VBOX 3i - Testing and Tuning Services

< you too will be happy after a full VBOX analysis by the master :)

Have a look at the customer list (Honda, Renault, Toyota, and Ferrari F1 departments use VBOX), you will even see RR listed there !


Testing method & equipment: NO HYPE! (sample customer tests at bottom of this page)

Rice Racing developed analysis is unrivaled at the price point (or any price point for that matter!) and goes back to first principles of elementary vehicular dynamics & mechanical engineering (< there is no fudge factors here, CLICK on links to see so formula development **ALL Rice Racing numbers match REALITY***).

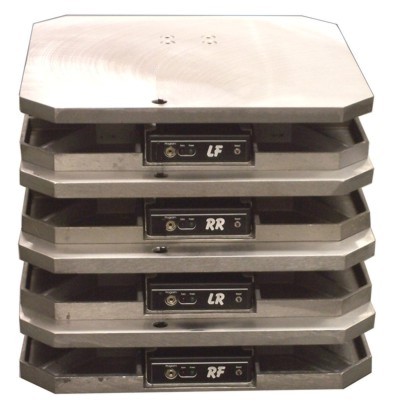

Each car is checked for basic mass with our Tanner high precision wireless corner scale system, then a series of tests are done on your specific vehicle to determine the actual Cd (drag coefficient) and f (tire rolling resistance coefficient) via the ultra high accuracy Race Logic VBOX3i and IMU data. From there RR developed formula are used to determine the exact driving power or wheel power your car has in reality, in real time, as you drive it! There is no other more factual/relevant testing that can be applied. Anyone can go test in an artificial environment and give you a guess of what the car (via artificial environment testing) has, but very few people have the equipment or the expertise to give you a comprehensive "actual" vehicular analysis as Rice Racing can.

I measure handling dynamics of vehicles as well (acceleration in X,Y,Z axis along with Vehicle PITCH, ROLL and YAW) for those who want to quantify handling traits or fundamentals of weight transfer etc, other variables such as ACTUAL wheel slip percentage to determine drive efficiency and grip levels are all recorded *for applicable vehicles* < Great for mapping of variable boost controllers or traction control units or even checking function of differentials effect on acceleration. The same can be applied to braking efficiency (distribution or ABS function).You can be assured when you come to me your car will be fully analyzed and professionally tweaked to it's maximum potential.

Here is a link to some testing analysis, a customer will get a basic report of the following *CLICK to view report*

*power report with AFR logged, boost pressure, TPS, acceleration rate, rpm, to name but a few select parameters.

*90kph to 140kph analysis of 3rd gear test performance (which can be used as a guide for all future upgrades or comparisons to others)

Other testing options are available on request and for a small nominal fee, custom tests or analysis can be carried out.

1/4 mile or circuit track racing analysis to name but 2 popular applications  (gearing optimization & even identifying driving faults)

Example real power analysis & boost response:

VERY IMPORTANT INFORMATION ON variability of INACCURATE Drag Racing Time slips !

Should the owner of one of these world class meters want to compare its performance against the shit backwards ghetto equipment used at drag strips, he or she will need to deal with "rollout," which is the distance a vehicle can move before triggering the archaic backwards timing light system.

A little drag-strip primer: As a car creeps toward the two light beams of the starting area, its front tire will eventually block the first beam and trigger a "prestage" warning. This informs the driver that the official starting line, where the "stage beam" shines across the track, is only seven inches ahead. When the front tire triggers that second beam, the vehicle is properly staged for a run. However, the vehicle's position can still vary by well over a foot while its front tires are blocking the stage beam. This is critical, because the drag-strip clock does not start until the second light, or stage beam, is uncovered. It is this distance that is the critical rollout.

The length of the rollout depends on the diameter of the tire and where the driver chooses to position the car at the start. Although the rollout distance is typically only a foot or so of a quarter-mile, it can affect the elapsed time by as much as 0.3 second, and to the serious gearhead, that's an eternity. Therefore, we needed to make sure every run in our test started at precisely the same point because of that 0.3-second issue.

  Also, a car accelerates to 3 mph in about 12 inches!






ET = (weight/hp)^0.2574 x 7.3571 & mph = (hp/weight)^0.3018 x 215.39 & hp = weight/(ET / 7.3571)^3.8850 are great formula to use for street cars, you can work out to very close actual engine power if you know the weight of your car (pounds) as run. http://www.stealth316.com/2-calc-hp-et-mph.htm and you will see a raft of road cars tested to confirm LRT formula here http://www.stealth316.com/misc/performance_lrt2.xls  NOTE: Weight must be TOTAL RUN WEIGHT, not estimated but rather measured.


90-140kph times and details  RX7's in various specifications (forget homo run computer geek FORUMS! this is where the real knowledge and testing is!)

RICESP The Don :)
Mods:  T04Z @ 17.9psi, Stock SP Intercooler, CDI, SMB catalyst and full legal street exhaust, Rice Racing Water Injection System
Time: 2.75 seconds!!! V-BOX DYNO REPORT
^ = 298rwkw indicated on VBOX Plot of boost and average power *Click to view* (average power compared to a tuned R35 GTR in "race trim") http://img12.imageshack.us/img12/7232/vbox90140test.jpg 0-100kmh 4.40 seconds! VBOX report and File of performance

Pin dick
Mods: Anal lube, T04Z 17.5psi, HKS V Mount, CDI, SMB, screamer pipe, tow truck special, 1800 FUJ TOW
Time: 2.99 seconds V-BOX REPORT
^ = 278rwkw indicated on VBOX
http://img224.imageshack.us/img224/2515/kinim9.jpg

Obese computer clerk
http://www.riceracing.com.au/rides/SeriesVIII_SpiritR.htm (Track time and more detail)
Mods: RF420 19.5psi, Parallel Turbo, upgrade SMIC, CDI, FULL SMB Exhaust

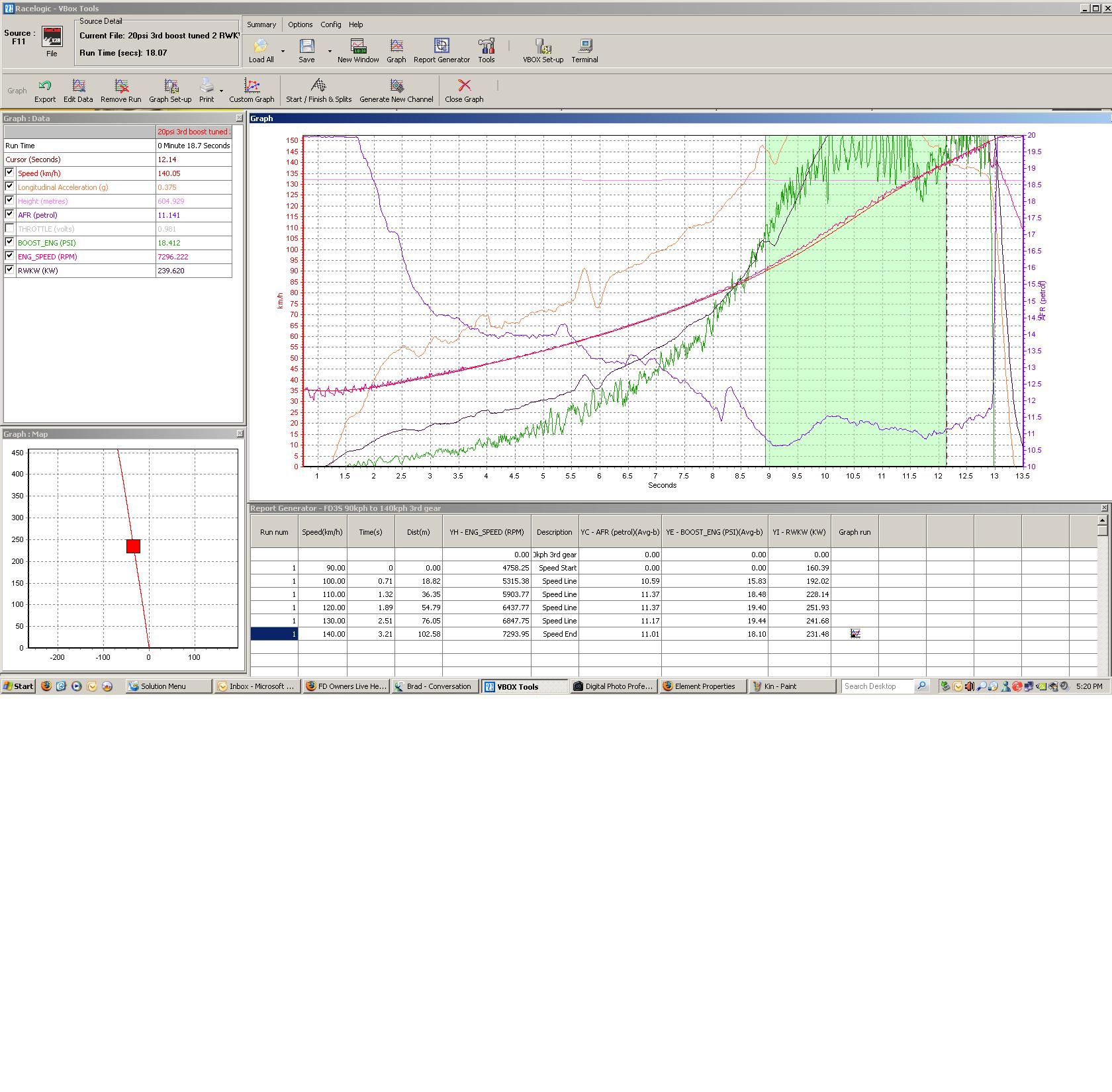

Time: 3.21 seconds V-BOX REPORT
^ = 257rwkw on VBOX
http://img126.imageshack.us/img126/1607/nathrl7.jpg
16.8psi
Time: 3.52 seconds
^ = 237rwkw on VBOX
13.0psi
Time: 3.73 seconds
^ = 212rwkw on VBOX

verbatimrx7
Mods: GCG T28's 17.5psi, FMIC, Parallel Turbo
Time: 3.45 seconds V-BOX REPORT
http://img412.imageshack.us/img412/3038/verbaitimgf6.jpg

FD7
Mods: FLUFFY DICE, CDI, 16psi, Knight Sports V mount, uprated fuel pressure
Time: 3.64 seconds

Jase
Mods:BPU, SMIC, 13.5psi, SMB
Time: 3.89 seconds

Rod
Mods:BPU, Stock IC, full exhaust, SMB muffler
Time: 3.90 seconds

Matt
Mods:BPU, Stock IC, 3.5" SMB, Greddy Profec B Spec 2 EBC, 11.6psi
Time: 3.90 seconds
^ = 188rwkw on VBOX @ 11.6psi (one person only test, hence lower boost to keep equal)

RXHEAVEN
Mods: Chilly Sauce, BPU, SMB, 13psi
Time: 3.91 seconds

ONE58 (Rob)
http://www.riceracing.com.au/rides/SeriesVIII_Rob.htm (this link show 1/4mile times, only difference is boost turned up to 1~1.05bar)
^ = 232.5rwkw on VBOX with 15psi boost
Mods: FMIC, BPU, SMB, 12.5psi, upgrade fuel pump and pressure regulator
Time: 3.94 seconds
^ = 215rwkw on VBOX @ 12.5psi

Chelsea
Mods:BPU, SMIC
Time: 4.11 seconds

Leo (FD3S)
Mods: SP IC, Zorst, 12 to 11.5psi.
Time: 4.28 seconds

Kiteman
Mods: BPU, Stock down pipe, CAT back exhaust.
Time: 4.49 seconds

built2kill

Mods: BOOST ISSUES!
Time: 4.58 seconds

SLYTHR
http://img176.imageshack.us/img176/5562/kostas7ausstockwe2.jpg (shows back to back test of stock ECU Aus spec S7 FD and RR tuned PFC fitted)
Mods: STOCK ECU, Stock down pipe and scat, CANON.
Time: 5.37 seconds
Mods: RR tune and PFC *as above*
Time: 4.66 seconds


Dennis
Mods: Mad pods! and gay exhaust with 10psi boost on stock scat equipped dump pipe and 20" rimz!!!
Time: 5.51 seconds

Other Reference cars
***************************************************************************************
Jake
Mods: 13B Bridge Port T51 25~27psi boost!! (600+rwhp car, illustration of power band and effect on this crucial time 4700rpm to 8200rpm on this car, no wheel spin just pure illustration of power band and effect on this time in real world test.... You can have too big a turbo!)
Time: 3.40~3.60 seconds
http://www.riceracing.com.au/water-injection.htm

Matt (stock standard Spirit R Type A)
(4.3 diff)
Mods: NONE! (13.85 second @ 104.78mph RR V-BOX Recorded for 1/4 mile *no roll out* 600m altitude test)
280PS
1270kg
0-100kph: 5.55 seconds (RR V-BOX tested)
Time: 5.06 Seconds (90 to 135kph! see report) V-BOX REPORT
http://img266.imageshack.us/img266/6577/matthl5.jpg


STOCK Australian 1992 RX7 factory figures
255bhp
1310kg
0-100kph: 6.3 seconds
Standing 400m: 13.8 seconds
@ 100mph

http://www.fd3s.net/magazine_articles/sports_car_international_2.html
^ great article showing back to back of 3 different tunes, correlates very well with all the types of cars I have tuned and have my own certified V-BOX data on....... you can compare from Matt's stock std Spirit R Type A through to ONE58 (Rob's) maximum effort BPU car (comes very close to stripped out race RX7!) in all area's. 60mph 1/4 time and mph (though PFS race car is about 150kg lighter! and uses slicks).
***************************************************************************************

Ferrari F360 V's Mazda RX7 1/4 mile analysis on VBOX

First a run down of the cars.

Cars: Ferrari F360,& ONE58's (mild tune)
Power: 400bhp V's 380bhp (RR estimated off VBOX power recording)
Weight (Kerb *less driver*): 1450kg V's 1270kg
Gearing: Ref VBOX test to speed (both cars geared equally in first 4 gears)

Claimed performance for F360 0-62mph (100kph) = 4.5 seconds
VBOX verified result (see below) http://en.wikipedia.org/wiki/Ferrari_360#Performance


(ONE58's performance analysis by RR)
ONE58 (Rob)
http://www.riceracing.com.au/rides/SeriesVIII_Rob.htm (this link show 1/4mile times, only difference is boost turned up to 1~1.05bar)
^ = 232.5rwkw on VBOX with 15psi boost
Mods: FMIC, BPU, SMB, 12.5psi, upgrade fuel pump and pressure regulator
Time: 3.94 seconds (90-140kph test)
^ = 215rwkw on VBOX @ 12.5psi

VBOX REPORT of RX7 to Ferrari F360 *click to view*

Both cars tested on road with VBOX equipment and the results may surprise some

VBOX Test Results (no roll out applied for 1/4 mile test)
Ferrari F360 V's Mazda RX7
0-100kph: 4.61 s V's 4.21 s
0-160kph: 10.42 s V's 9.29 s
1/4 mile: 12.92 s V's 12.54 s
Velocity: 181.49kph V's 190.73 kph

So you can see just how great the rotary really is... nothing short of an amazing car when fine tuned to its full potential
